Internal Structure Of SS409 Exhaust Muffler

Views: 7     Author: Site Editor     Publish Time: 2024-06-06      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


In the context of the rapid development of the current automobile manufacturing industry, the quality and performance of auto parts have gradually transformed into one of the key indicators to measure the overall quality of automobiles. Among the many automotive accessories, the SS409 exhaust muffler, with its unique internal structure, has become a key component of the automotive exhaust system. Its performance directly affects the dynamic performance, emission index and driving comfort of the vehicle. In this paper, the internal structure of SS409 exhaust muffler will be introduced in detail, and the key components such as perforated pipe, baffle and spiral pipe will be discussed as the focus, in order to provide effective reference for the majority of car modification enthusiasts.


nick-thomas-BFtHJRUboVo-unsplash

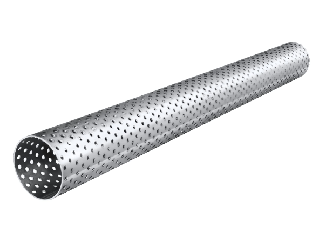

· Perforated tube

The perforated pipe is an important part in the internal structure of SS409 exhaust muffler, and its main function is to reduce exhaust noise. When the exhaust gas produced by the engine combustion is discharged through the exhaust system, it will produce strong airflow noise. Perforated pipe by opening a certain number, size, shape of the hole in its pipe wall, so that the airflow through the turbulent flow, thereby reducing the flow speed and noise. At the same time, the perforated pipe can also effectively absorb the high-frequency noise in the exhaust gas, and further improve the noise reduction effect.


企业微信截图_17176352869117

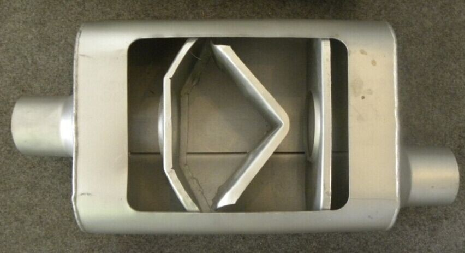

· Baffle

The baffle plays a role in separating the air flow and changing the direction of the air flow inside SS409 exhaust muffler. When the exhaust gas passes through the baffle, the airflow direction is changed and the airflow speed is reduced, thus reducing the airflow noise. In addition, the baffle can also make the noise components in the air flow interfere with each other to achieve the purpose of noise reduction. The setting and layout of the baffle has an important impact on the overall performance of the muffler, so the structure and material of the baffle need to be fully considered in the design and manufacturing process.


企业微信截图_17176353006925


· Spiral tube

The spiral tube is a special design in the internal structure of SS409 exhaust muffler, whose main function is to extend the airflow path, reduce the airflow speed, and thus reduce the exhaust noise. The design of the spiral tube makes the exhaust gas constantly change direction during the flow process, increasing the friction between the airflow and the pipe wall, and reducing the airflow speed. At the same time, the spiral tube can also effectively absorb the middle and high frequency noise in the exhaust gas, and further improve the noise reduction effect.


企业微信截图_17176352907979

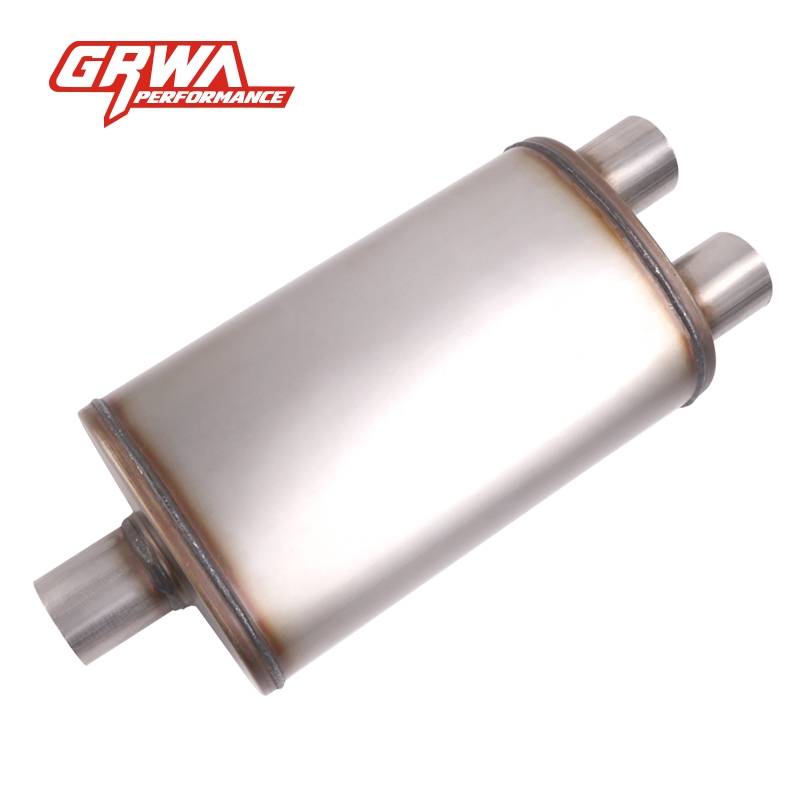

In addition, with the continuous progress of technology and the increasing demand of consumers, the quality and performance of auto parts not only directly affects the safety and reliability of cars, but also relates to the driving experience and vehicle retention rate. As a result, GRWA's products are increasingly designed and manufactured using high-quality raw materials. SS409 exhaust muffler adopts high quality 409 stainless steel material, with high temperature resistance, corrosion resistance, high strength advantages, can withstand high temperature and high pressure exhaust environment. And through the strict quality control system to ensure that every part can meet the expected performance standards. In the manufacturing process, SS409 exhaust muffler from GRWA uses advanced welding technology and rigorous processes to ensure the quality and performance of the product.


utilRequest


At the same time, GRWA is continuously improving its research and development and manufacturing capabilities to meet the market demand for high performance, high reliability accessories. In the future development of the automotive industry, GRWA will continue to provide more efficient and environmentally friendly exhaust solutions for automobiles.


tharoushan-kandarajah-_TlugpIk0YU-unsplash
