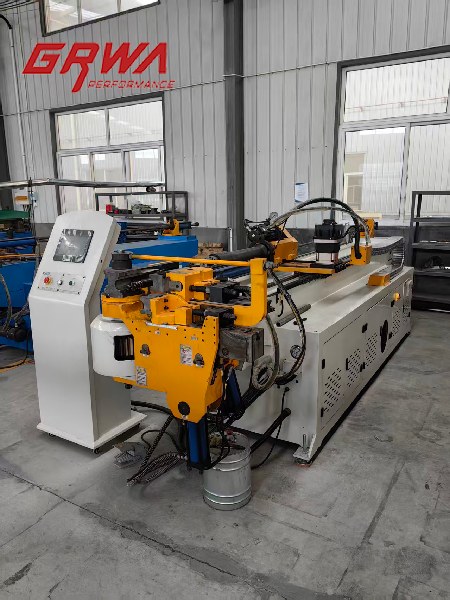

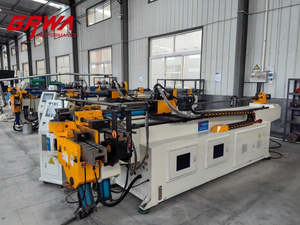

CNC Hydraulic Pipe and Tube Bender DW-63 for 3D Precision Bending

Advanced CNC Pipe Bending Machine for Precision Tube Processing

The DW-63CNC-2A-1S is a fully automatic bending machine pipe CNC system designed for high-precision and high-efficiency tube forming. Equipped with a reliable hydraulic system and servo motors, this pipe and tube bender ensures stable performance in mass production environments.

According to the technical specifications, the machine supports bending capacity up to Φ63×3 mm carbon steel pipes, with high positioning accuracy of ±0.1 mm and ±0.1°, making it suitable for demanding industrial applications.

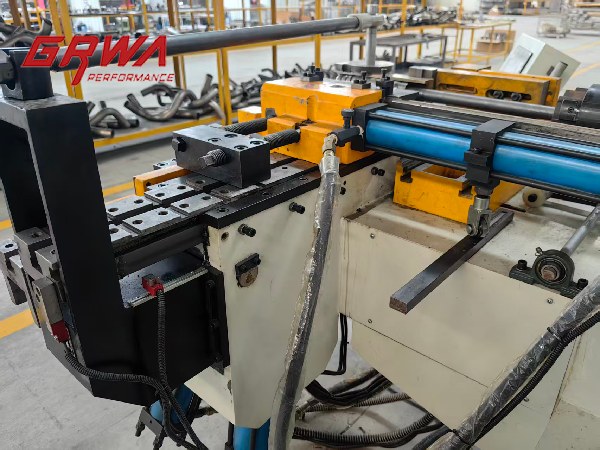

Hydraulic Tubing Bender with Intelligent CNC Control

This hydraulic tubing bender adopts PLC control with a touch screen interface, enabling easy operation in manual, semi-automatic, and full automatic modes. The system supports multi-angle programming and can store up to 2000 bending programs, improving production flexibility and efficiency.

Key advantages:

• High-speed bending up to 85°/sec

• Servo-driven feeding and rotation

• Multi-axis coordinated control

• Automatic error detection and correction

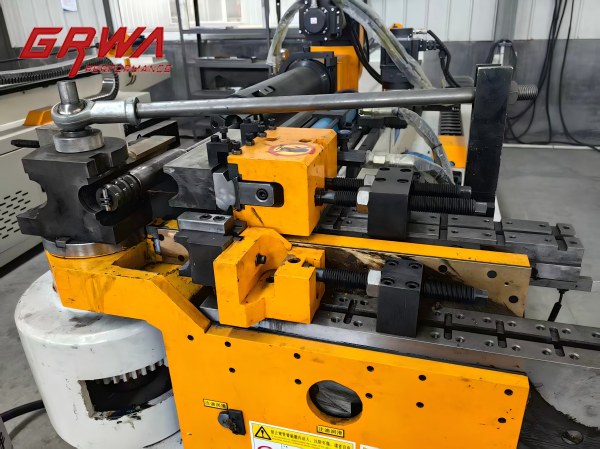

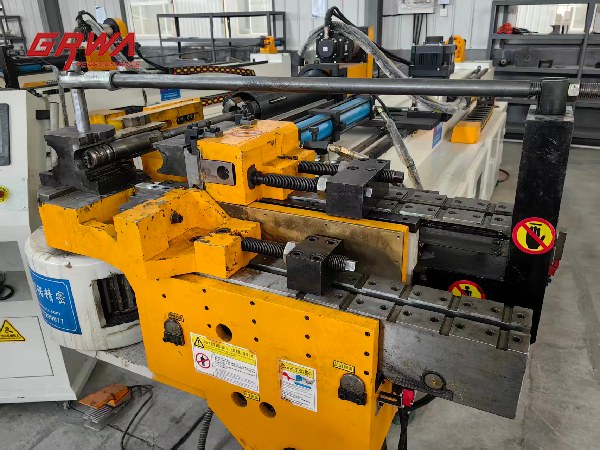

Ideal Muffler Bender for Automotive Exhaust Manufacturing

This machine is widely used as a muffler bender in automotive industries. It is perfect for:

• Exhaust pipe bending

• Muffler fabrication

• Automotive tubing systems

• HVAC and industrial pipe processing

Its ability to perform complex 3D bending makes it suitable for producing high-quality exhaust components with consistent accuracy.

Key Features of the CNC Bending Machine

• Fully automatic CNC pipe and tube bender

• Hydraulic-driven bending system for stable performance

• High precision servo motor control (Mitsubishi system)

• 3D bending capability for complex geometries

• Touch screen interface with multi-language support

• Programmable bending sequences (up to 20 bends per pipe)

Applications

This bending machine pipe CNC is widely used in:

• Automotive exhaust systems

• Furniture and metal frame production

• Shipbuilding and construction

• Bicycle and motorcycle parts

• Industrial piping systems

Technical Specifications

• Max Bending Capacity: Φ63 × 3 mm (Carbon Steel)

• Max Bending Radius: 180 mm

• Min Bending Radius: Depends on tube diameter

• Max Feeding Length: 2500 mm

• Max Mandrel Length: 2800 mm

• Bending Angle: 0–190° (CNC controlled)

• Control System: PLC (Mitsubishi or equivalent)

• Bending Accuracy: ±0.1°

• Feeding Accuracy: ±0.1 mm

• Rotation Accuracy: ±0.1°

• Max Working Speed:

Bending Speed: 85°/sec

Rotation Speed: 200°/sec

Feeding Speed: 1000 mm/sec

• Hydraulic Pressure: Max 12 MPa (adjustable)

• Servo Motor System: Mitsubishi servo motors and drivers

• Operation Modes: Manual / Semi-Automatic / Fully Automatic

• Programmable Capacity: Up to 20 bends per tube

• Data Input Method:

• XYZ coordinate input

• YBC processing values

• Machine Dimensions: 5000 × 1250 × 1700 mm

• Machine Weight: Approx. 3050 kg
